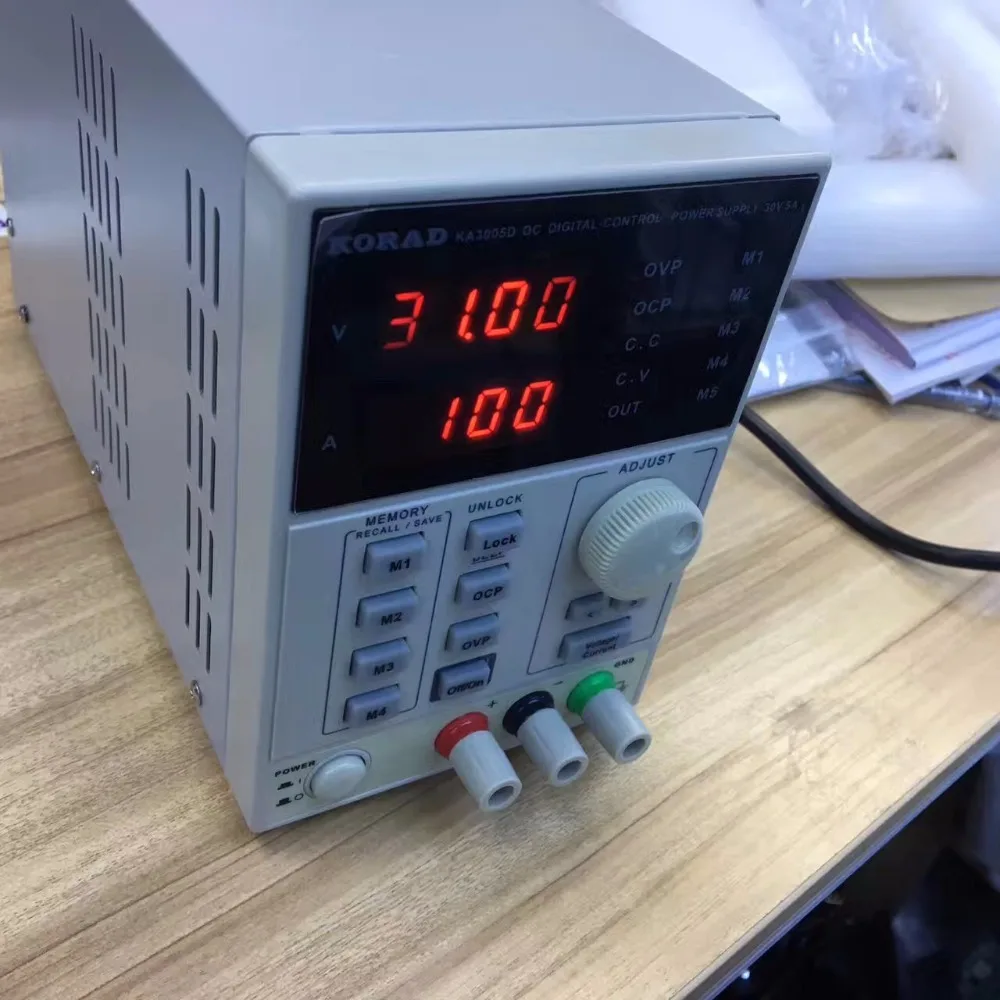

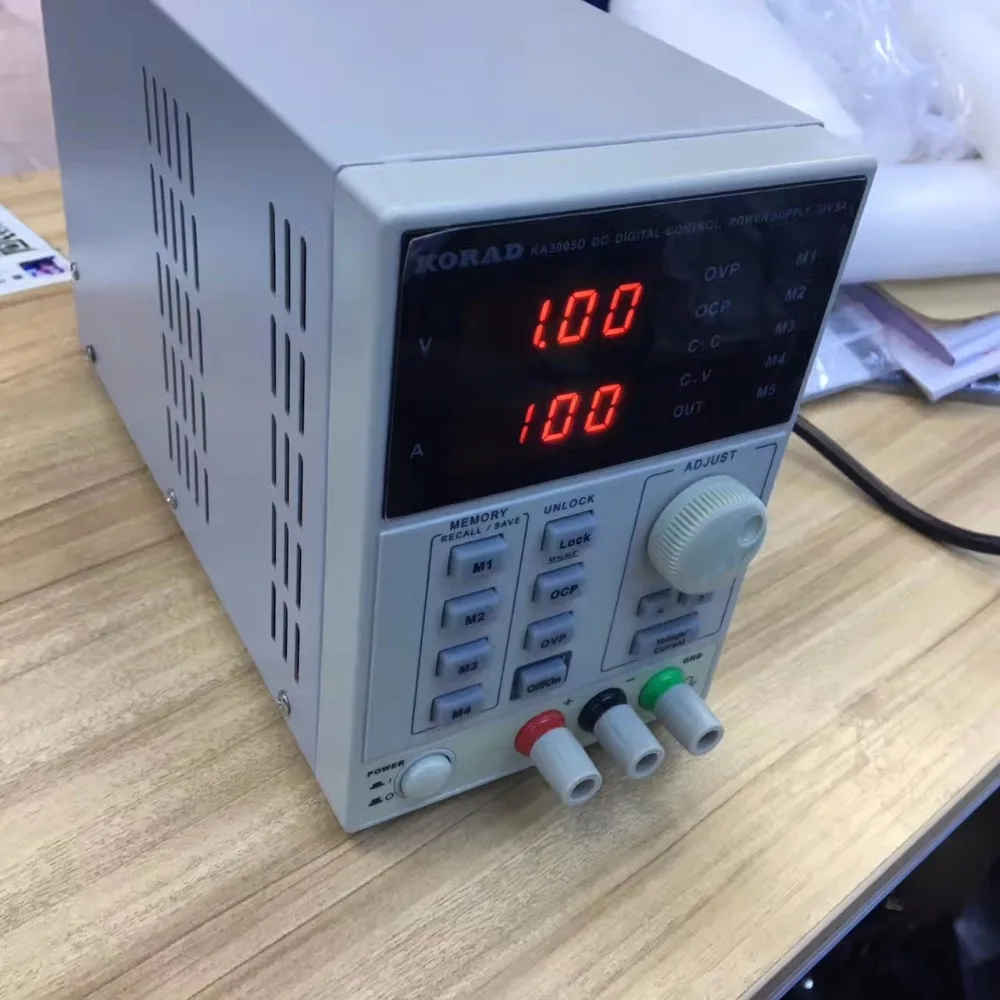

High quality KORAD KA3005D 0~30V 0~5A Precision Variable Adjustable DC Power Supply Digital Regulated Lab Grade for Phone Repair
Main features:
Compact Design
Dual 4 Digit LED Displays
Digital Controls
Output switch control
4 sets of parameters can be stored inside for fast recall
Keyboard Lock to prevent accidental changing of set parameters
Circuit protection for over load, short circuit and over temperature.
Automatic switching between mA and A display
Quiet variable speed fan
Operating Conditions:
Input voltage: 220V +/-10%
Frequency range: 50- 60Hz
Operating temperature: 32-104 F (0-40 ºC)
Operating humidity: < 80%RH
Storage temperature: 32-158 F (0-70 ºC)
Storage humidity: < 70%RH
Stable Voltage:
Output Voltage Range: 0-30V Continuously adjustable
Setup Resolution: 10 mV
Setup Accuracy: <0.05% +20 mV
Ripple: < 1mVRMS
Read back Accuracy: 10 mV
Temp. Coefficient: < 0.1% + 10mV
Read back Temp. Coefficient: < 100 ppm+10 mV
Stable Current:
Output Current Range: 0-5A Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy: <0.1% +3 mA
Ripple: < 3mARMS
Read back Accuracy: 1 mA
Temp. Coefficient: < 0.1% + 5mA
Read back Temp. Coefficient: < 100 ppm+5 mA
Weight: 9.5 lbs. (4.3 Kg)
Dimensions: 4.3 x 6.1 x 10.25 inches (110 x 156 x 260mm)
