Specification:

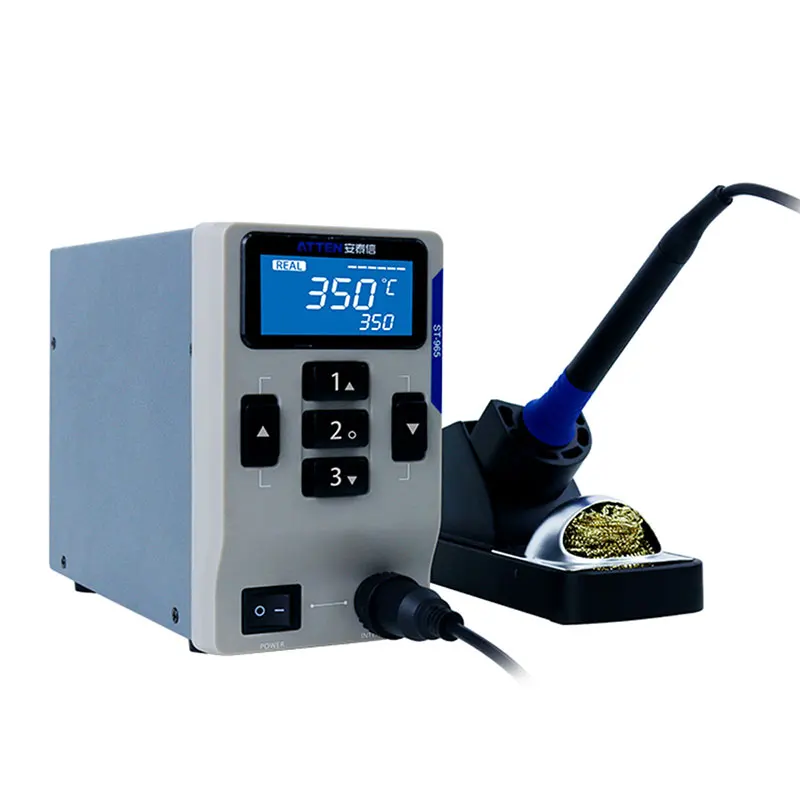

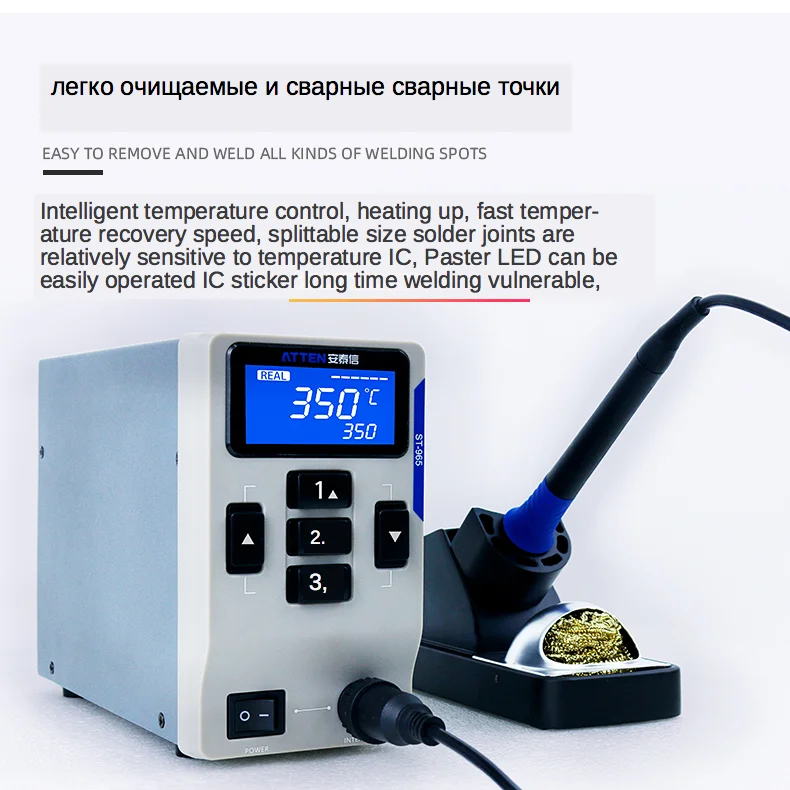

ST-965 Soldering station:
Temperature locking,temperature calibration and temperature alarming function
Password protecting function and temperature unite switching function
Buttons(1,2,3) for pre-setting or switching frequentlyused temperature
New design with LCD display screen making control visualization
Automatic standby ,shutdown with smart time setting

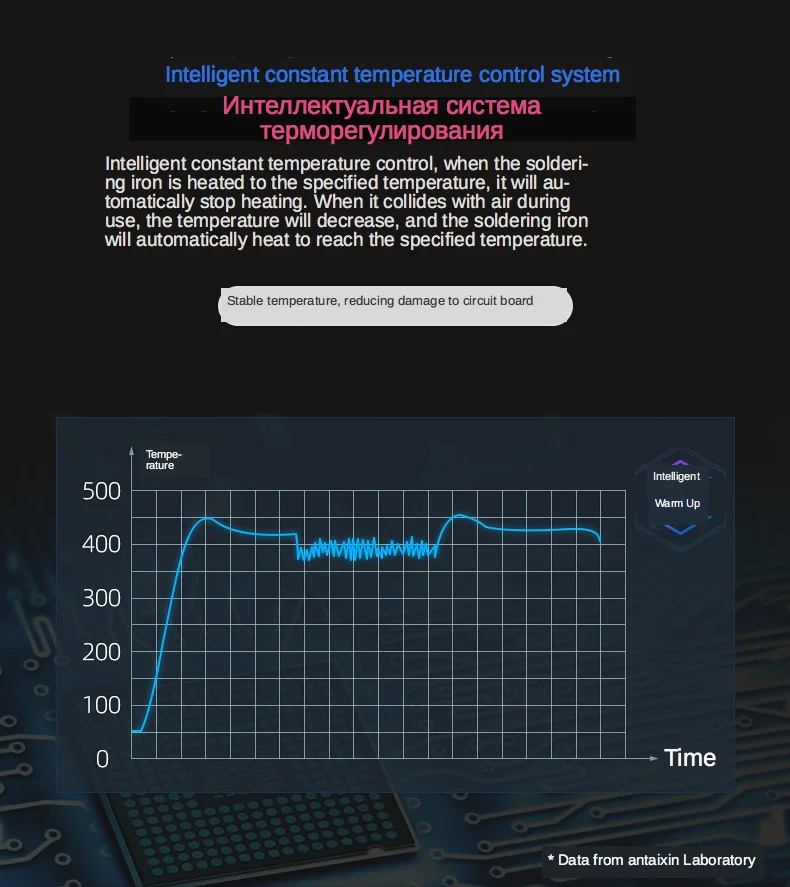

MCU controlled temperature calibration
Beep alarm function available
Security sticker
Copper transformer
Pluggable heater
SMT Process
Define button:
"▲" add value ,"▽" decrease value
That shortly press button change value slowly,long press button change value rapidly
Long press both key "1" and "3" at the same time to enter into menu mode
Key "2" means save or confirm
3 groups of preset key
Key "1" ,"2" and "3" is 3 groups of preset key
Set preset value by long pressing key key "1" ,"2" or "3" under working status
Menu set:
LOC:Temp lock function
C-F:Temp switch °C/°F
CAL:Temp cailbration +/- 50°C
SLP:Auto-sleep function(1-60mins)
OFF:Auto-standby function(1-60mins)
H-L:Temp limited alarm function(beep 20~80 °C)
PSD:Password protection (01-999 digits)
FAC:Reset
Application

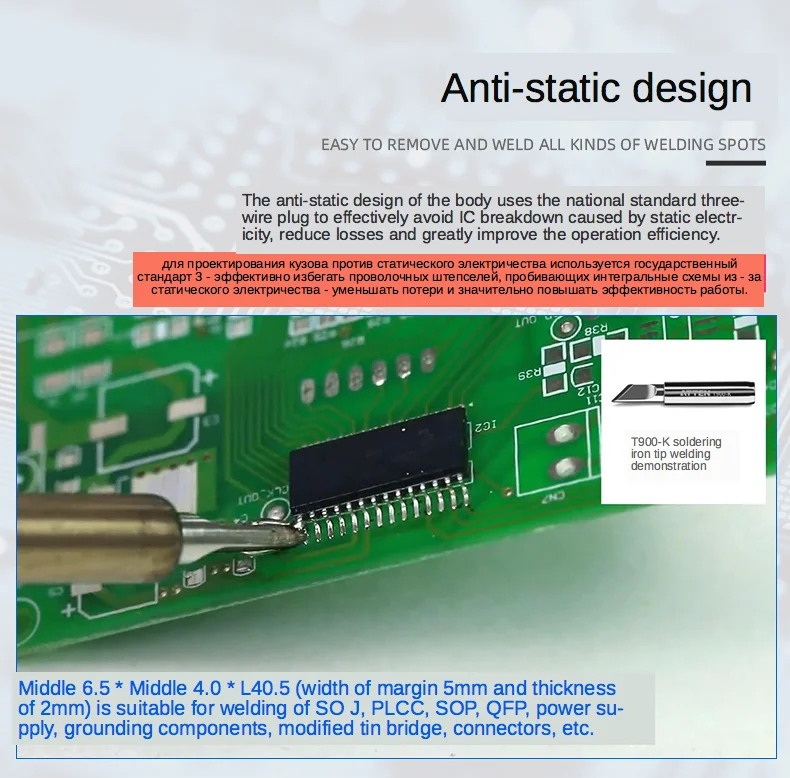

Anti-static funtion by grounding
